For example, if a weighing scale has a range of 0-100 kg, and the % FS accuracy is 99.5% FS. So the FS error is 100-99.5 = 0.5% FS, this means that the value of any reading can be off by (0.5/100)*(100-0) = +/- 0.5 kg.

Simply so, how do you calculate calibration error?

Percent Error Example Calculation

  1. Subtract one value from the other: 2.68 - 2.70 = -0.02.
  2. Depending on what you need, you may discard any negative sign (take the absolute value): 0.02. This is the error.
  3. Divide the error by the true value:0.02/2.70 = 0.0074074.
  4. Multiply this value by 100% to obtain the percent error:

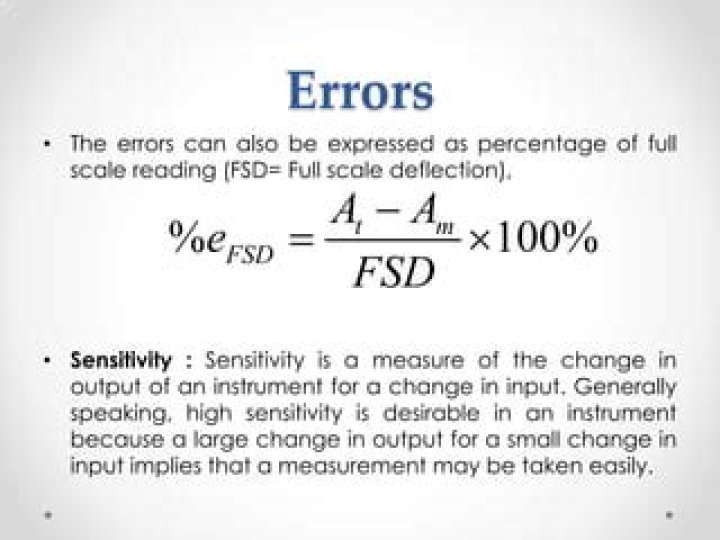

Also, what is FSD in pressure gauge? F.S.D or F.S is relating to the accuracy of the gauge, this stands for full-scale deflection or full-scale. It means the accuracy (C.L or K.L) of the gauge is of the full gauge range.

Correspondingly, how do you calculate full scale error?

In the context of the calibration error calculator, the full scale is determined by subtracting the maximum pressure from the minimum pressure:

  1. 2 bar.
  2. 400 mbar.
  3. 2.5 bar.

What is FS accuracy?

Percentage of Full Scale (FS) Accuracy: A flow meter that has an accuracy expressed in FS has a fixed error band across the flow range of the meter. For example, a flow meter with a 1% FS accuracy that has a range of 10GPM-100GPM has an error band +/- 1% of 100GPM, which is equal to +/- 1 GPM.

Related Question Answers

What is a good percent error?

In some cases, the measurement may be so difficult that a 10 % error or even higher may be acceptable. In other cases, a 1 % error may be too high. Most high school and introductory university instructors will accept a 5 % error. But this is only a guideline.

What is a calibration error?

instrument errorThe difference between values indicated by an instrument and those that are actual. Normally, a correction card is placed next to the instrument indicating the instrument error. Also called calibration error.

How do I determine percent error?

To calculate percentage error, you subtract the actual number from the estimated number to find the error. Then, you divide the error in absolute value by the actual number in absolute value. This gives you the error in a decimal format. From there, you can multiply by 100% to find the percentage error.

What factors affect calibration?

Some of common factors that would normally have an effect on the accuracy of a pressure calibrator measurement are: hysteresis, repeatability, linearity, temperature, and gravity. A change in any of these can cause a deviation in the accuracy of the equipment used for calibration.

What is the formula for calculating tolerance?

Tolerance Calculation Formulas
  1. c = a - b. Upper limit dimension of the closing element:
  2. c max = a max - b min Lower limit dimension of the closing element:
  3. c min = a min - b max Tolerance of the closing element (subtracting equation 3 from equation 2)
  4. c max - c min = a max - a min - (b min - b max ) Such as.
  5. T c = T a + T b

Can percentage error be more than 100?

The percent uncertainty is then the ratio of the standard error to the mean value (times 100), This number is larger than 100 if the fraction on the right side is larger than 1, which is certainly possible.

Can you have negative percent error?

Percent Error. If the experimental value is less than the accepted value, the error is negative. If the experimental value is larger than the accepted value, the error is positive. Often, error is reported as the absolute value of the difference in order to avoid the confusion of a negative error.

What does percent error tell you about accuracy?

This difference indicates the accuracy of the measurement. The accuracy is a measure of the degree of closeness of a measured or calculated value to its actual value. The percent error is the ratio of the error to the actual value multiplied by 100. A random error is related to the precision of the instrument.

What is full scale error?

Accuracy of full scaleIf a meter's accuracy is based on a percentage of its full reading capability, the error is a fixed value. For example; an error of 0.5% of full scale, in a 100-gallon per minute (gpm) device is +/- 0.5 gpm.

What is error formula?

Percent Error FormulaPercent error is the difference between a measured and known value, divided by the known value, multiplied by 100%. When keeping the sign for error, the calculation is the experimental or measured value minus the known or theoretical value, divided by the theoretical value and multiplied by 100%.

What is full size scale?

having the exact size or proportions of the original: a full-scale replica. using all possible means, facilities, etc.; complete: The factory will commence full-scale operation next month.

How do you find the percent Span error?

The equation for % Span is:
  1. % Span = ((INST – STD) / Span) * 100.
  2. INST is the Instrument reading, or output, in engineering units.
  3. STD is the value of the Calibration Standard (or Reference Standard) Instrument.

What is span accuracy?

Reading accuracy is the deviation from true at the point the reading is being taken and is expressed as a percentage. Absolute accuracy of an instrument is the deviation from true as a number not as a percentage. Span – It can be defined as the range of an instrument from the minimum to maximum scale value.

What is full scale output?

Full Scale Output (FSO) can have two meanings. The first meaning is that it is the resulting output signal or displayed reading produced when the maximum measurement for a given device is applied. The second meaning applies to the difference between the minimum and maximum output value.

How do you calculate precision and accuracy?

Find the difference (subtract) between the accepted value and the experimental value, then divide by the accepted value. To determine if a value is precise find the average of your data, then subtract each measurement from it. This gives you a table of deviations.

What is full scale reading?

Accuracy of reading means the percentage of variation will remain a constant percentage over the full range of flow. Accuracy of full scale means the percentage of variation is fully dependent on the maximum flow rate of the device and the variation will be a constant flow rate (ie: gpm) as opposed to a percentage.

What is RDG in accuracy?

(2) rdg. (reading: read value, displayed value, indicated value) Refers to the value actually measured, i.e., the value that is currently indicated on the instrument. For example, a conductor being measured gives a value of 300.0 V on the clamp meter's display. 300.0 V is therefore the reading, or rdg.

How often should pressure gauges be calibrated?

once a year

How do you select a pressure gauge range?

To select the correct pressure range for a gauge, where there is dynamic pressure with potential of pulses and surges, choose a full-scale pressure where the operating pressure occurs in the middle half (50 to 75 percent) of the scale to allow for pressure swings because of pulsation and pressure spikes in the system.

Is standard for pressure gauge calibration?

4.2 This calibration procedure is to be performed upon receipt of a pressure gauge and annually thereafter. 5.1 Pressure Gauge. -A pressure gauge meeting requirements of Federal Specification GG-G-76E and the American National Standard ANSI B40. 1-1980.

What is calibration of pressure gauge?

Basic pressure gauge calibration is the comparison of measurement values of a unit under test (your gauge) with those of a more accurate calibrated reference instrument. The purpose of calibration is to maintain the quality and accuracy of measurement and to ensure the proper working of a particular instrument.

Can an air pressure gauge be used for oil?

Our pressure gauges can be used with air, gas, oil or water, to measure pressure within any operating system. All pressure gauges feature black enameled aluminum pointers, polycarbonate windows (temperature compensating for liquid filled only), and a threaded brass NPT connection.

What is full scale deflection current?

Whenever we want to measure the voltage or current by analogous instruments, we should be aware of a mechanism. So, for a value of particular current or voltage if the deflection (mechanical) is full I.e. upto the range of instrument , then it is known as full scale deflection.

What is Dial size of pressure gauge?

Pressure gauge dial sizes range from 11⁄2" to 16" diameters. Generally, readability requirements, space limitations and required gauge accuracy determine dial size. Accuracy's of 0.25% or 0.10% generally have dial sizes of 41⁄2" or larger since more dial graduations are required.

How accurate are flow meters?

Flow Measurement: The accuracy standard of flow measurement devices is +/- 5.0 percent. While we now know that the flowmeter itself is not the only factor in this error percentage, for the sake of clarity and round numbers, we'll stick with +/- 5.0 percent.

What is the difference between range and span?

The zero value is the lower end of the range. Span is defined as the algebraic difference between the upper and lower range values. The calibration range may differ from the instrument range, which refers to the capability of the instrument.

What is the reading accuracy of a voltmeter?

For example, an analog voltmeter with a ±3% accuracy is set to the 0 to 100-V range. Based on this accuracy, its pointer can be 3 volts (100 V x 0.03 = 3 V) below or above the true reading. If the true measured value is, for example, 90.0 V, the meter might read between 87 V and 93 V or ± 3.3% of reading.

How do you measure the sensitivity of a sensor?

Using an excitation of 10V therefore fives a FULL SCALE OUTPUT = 2.995 x 10 = 29.95mV. To calculate the sensitivity value of a transducer, simply divide the range in units of the transducer by the full scale output value (as calculated in section 2).
